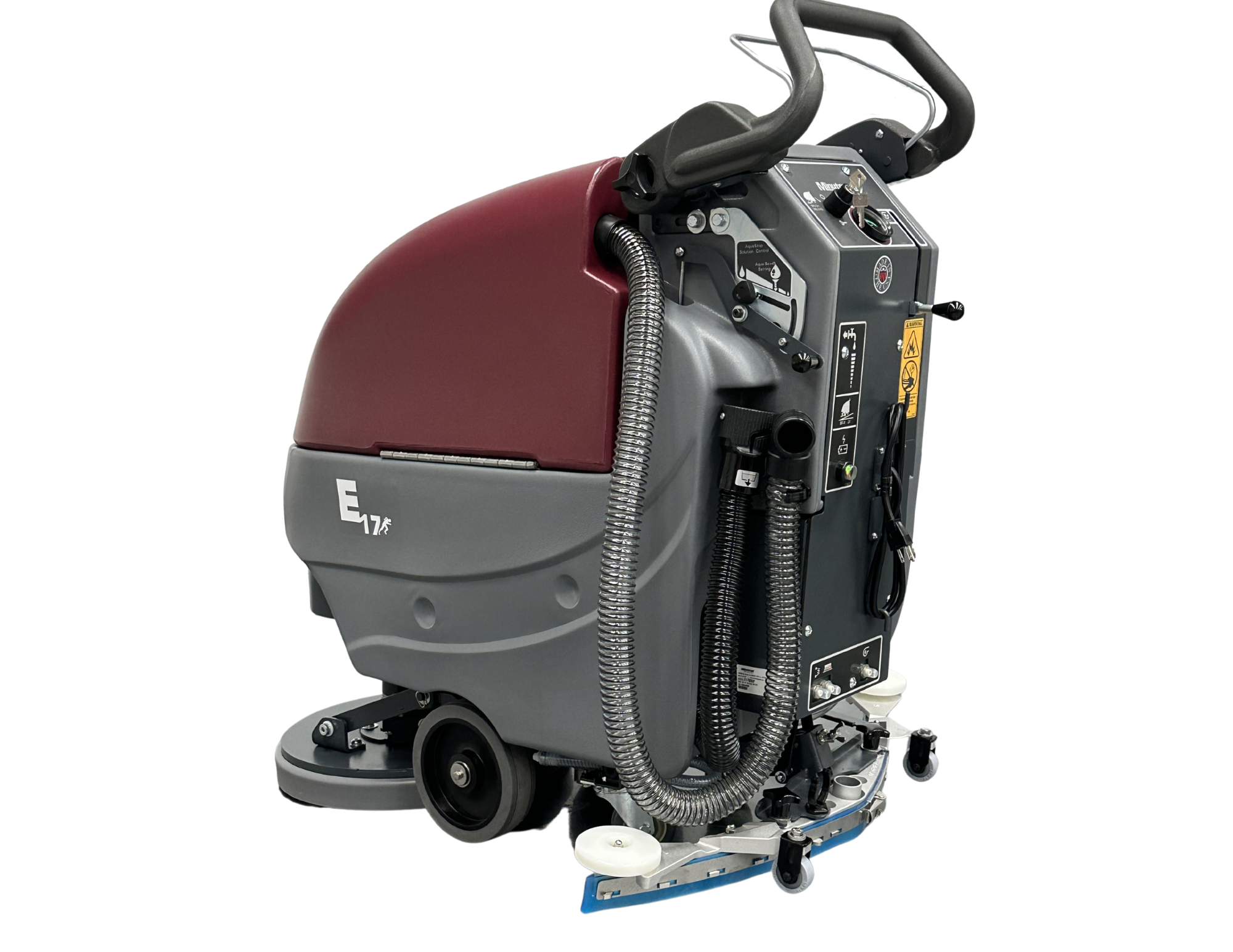

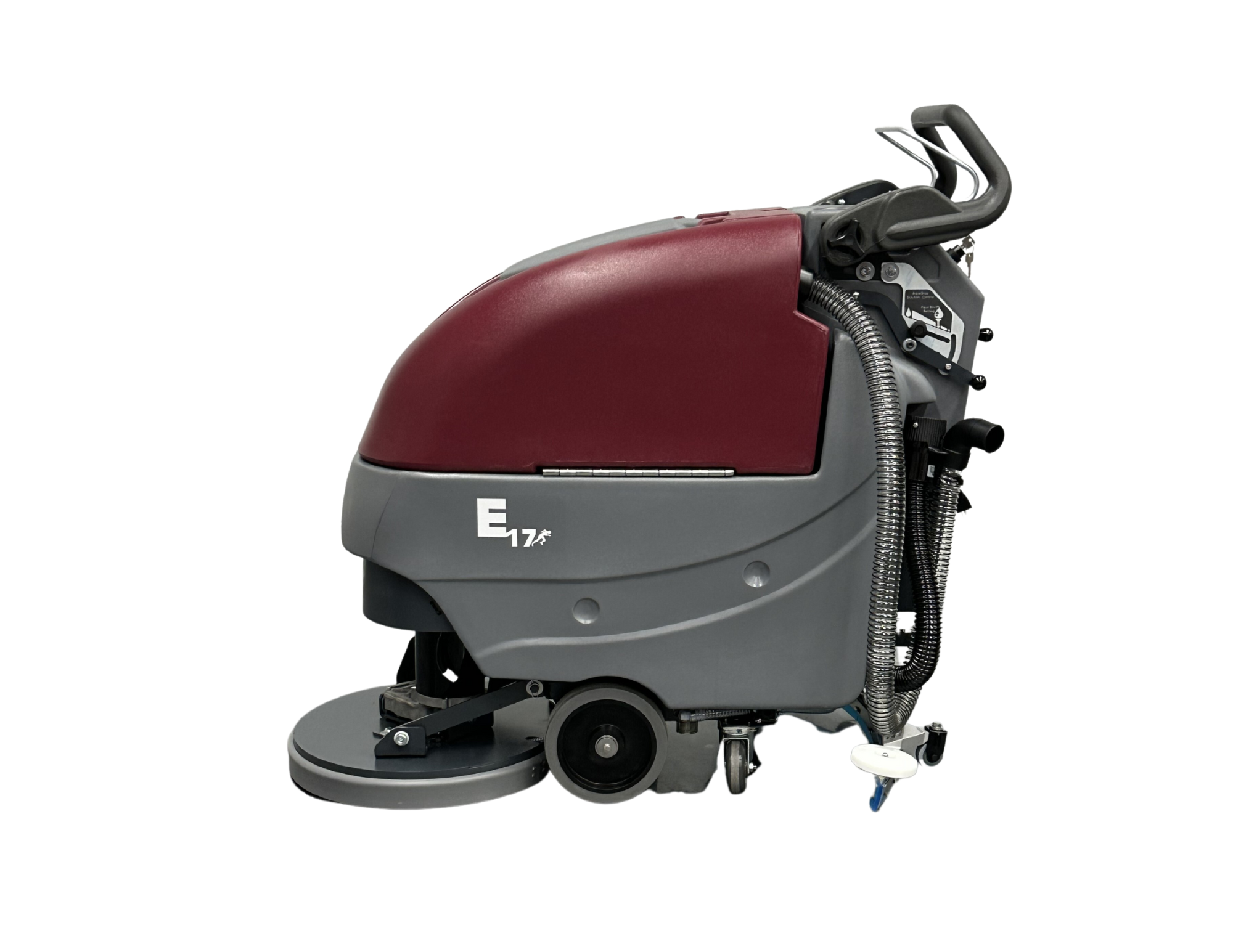

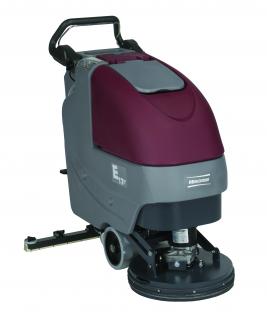

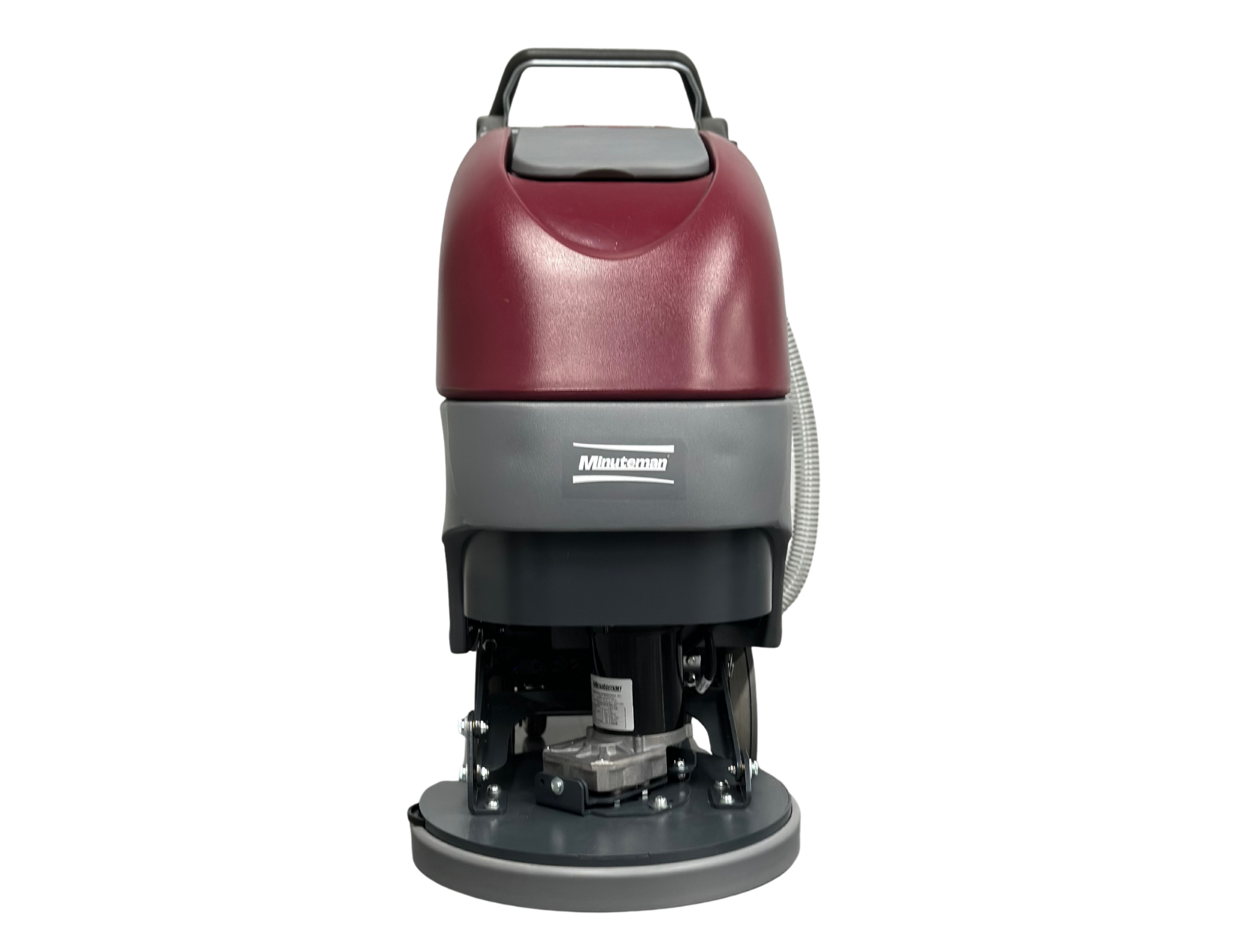

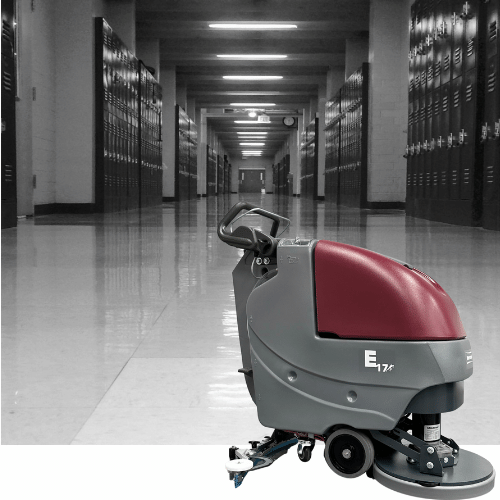

E17

General Overview

  • The E17 is a compact disc brush scrubber with a 17” cleaning path
  • Offered in brush drive or traction drive
  • Advanced technology makes the E17 a part of the innovative walk-behind scrubber line, the E Series

E17

Key Features:
  • On-board charger is convenient and allows the machine to be charged anywhere
  • Brush loading/unloading is as easy as the turn of a switch, the operatore never has to manually remove the brushes
  • 12 gallon solution tanks and 13 gallon recovery tanks
  • Squeegees are designed so that no operator adjustment is necessary
  • Parabolic squeegee standard on traction drive models and option on brush drive models
  • Easy-to-clean, hygienic recovery tank
  • When the on-board charger is plugged in, the machine is not operable
  • Adjustable handle and ergonomic hand bails offer superior handling of the machine
  • Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial

Download BrochureDownload LitHow-To DemoGet a Quote

More Information:
Click the titles below to learn more.

Ease of Use

  • The E17 covers 17,000 sq. ft. per hour (1,579m²) *based on traction driven model
  • Low brush deck is ideal for cleaning around and underneath obstacles
  • Small, compact design allows for cleaning even in tight spaces
  • Small, compact design allows for cleaning even in tight spaces
  • Compact design results in total operator comfort by focusing on ergonomics
  • Sleek design provides an excellent line of sight to the area to be cleaned

Specifications

Brush Speed: 180 rpm
Brush Type: Disc
Drive Motor: 1/5 HP (150 W)
Number of Brushes: 1
Rated Voltage: 24 Volts
Recovery Capacity: 13 Gal (49 liters)
Solution Capacity: 12 Gal (45 liters)
Squeegee Width: 33 in (84 cm)
Theoretical Productivity (BD): 12,750 ft2 /hr ( 1,185 m²)
Theoretical Productivity (TD): 23,188 ft2 / hr (2,154 m²)
Vacuum Flow: 65 cfm (110 m3/hr)
Vacuum Power: 60 HP (450 W)
Vacuum Waterlift: 45 inches ( 112mbar)
Weight with Batteries (BD): 306 lbs (139 kg)
Weight with Batteries (TD): 365 lbs (166 kg)
Weight without Batteries (BD): 231 lbs (105 kg)
Working Speed (BD): 1.7 mph (2.7 km per hr)
Working Speed (TD): 3.1 mph (5 km per hr)

Green Features

  • Sound level < = 70dBs
  • Maintenance free gel batteries available
  • Tool free brush removal
  • Tool free squeegee removal
  • One button operation
  • Ergonomically designed for ease of use

Parts, User & Service Manuals

For disc brush drive:

SparePartsDownload
UserManualDownload

For disc brush drive – electric:

SparePartsDownload
UserManualDownload

For disc traction drive:

SparePartsDownload
UserManualDownload
