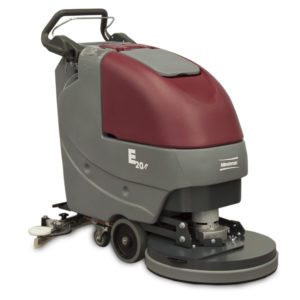

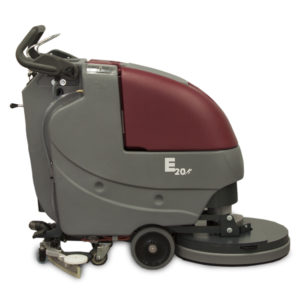

E20

General Overview

  • The E20 is a compact scrubber with a 20” cleaning path and is available in the disc and cylindrical models. The disc model is offered in brush drive or traction drive and the cylindrical model is traction drive.
  • Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series

E20

Key Features:
  • Performs daily scrubbing and or the removal of floor finish to effectively clean and restore floors.
  • Brush loading/unloading is as easy as the turn of a switch, the operator never has to manually remove the brushes
  • 12 gallon solution tanks and 13 gallon recovery tanks
  • Squeegees are designed so that no operator adjustment is necessary
  • Parabolic squeegee standard on traction drive models
  • Easy-to-clean, hygienic recovery tank
  • When the on-board charger is plugged in, the machine is not operable
  • Adjustable handle and ergonomic hand bails offer superior handling of the machine
  • This Traction drive model offers ergonomic, adjustable speed regulation with the turn of a dial

Download LitGet a Quote

More Information:
Click the titles below to learn more.

Ease of Use

  • The E20 is a compact scrubber with a 20” cleaning path and is available in the disc and cylindrical models. The disc model is
    offered in brush drive or traction drive and the cylindrical model is traction drive.
  • Advanced technology makes the E20 a part of the innovative walk-behind scrubber line, the E Series.
  • Easy-to-understand controls ensure that the machine is simple to operate.
  • The compact and sleek design results in total operator comfort by focusing on ergonomics and provides an excellent
    line of sight to the area to be cleaned.
  • The adjustable handle and ergonomic hand bails offer superior handling of the machine and the traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial.
  • The E20 contains an on-board charger that is convenient and allows the machine to be charged anywhere.
  • When the on-board charger is plugged in, the machine is not operable.
  • The brush loading/unloading is as easy as the turn of a switch and the operator never has to manually remove the brushes.
  • A parabolic squeegee is standard.
  • A parabolic squeegee is standard on both models. The squeegees are designed so that no operator adjustment is necessary.
  • This vacuum contains 12 gallon solution tank and a easy-to-clean, hygienic, 13 gallon recovery tank.

Specifications

Drive Motor: 1/5 HP
Front Wheels: Non-Marking Urethane
Front Wheels: Non-Marking Urethane
Noise Level: < = 68 Power cord: On-Board Charger
Rated Voltage: 24 volts
Recovery Capacity: 13 Gal
Scrub Path: 20″
Solution Capacity: 12 Gal
Squeegee Width: 33″
Theoretical Productivity (TD): 27,280 ft2/hr
Vacuum Flow: 65 cfm
Vacuum Power: .60 HP
Vacuum Waterlift: 45″
Weight with Batteries (TD): 313 lbs
Working Speed (TD): 3.1 mph

Green Features

  • Sound level < = 70dBs
  • Maintenance free gel batteries available
  • Tool free brush removal
  • Tool free squeegee removal
  • One button operation

Parts, User & Service Manuals

For disc brush drive:

SparePartsDownload
UserManualDownload

For disc brush drive – electric:

SparePartsDownload
UserManualDownload

For disc traction drive:

SparePartsDownload
UserManualDownload

For cylindrical disc traction drive:

SparePartsDownload
UserManualDownload
