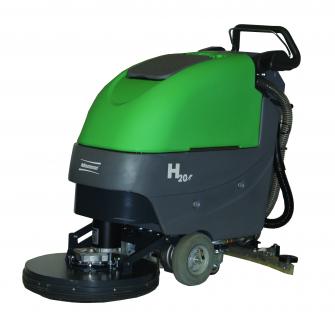

H20

H20

General Overview:
  • The H20 is a compact disc brush scrubber with a 20”cleaning path, specifically designed for hospitals and healthcare facilities
  • 12 gallon solution tank and 13 gallon recovery tank
  • Equipped with silence mode, which cuts sound pressure from 70 to 66 decibels, resulting in even quieter operation
  • Anti-microbial recovery tank is hygienic and easy-to-clean
  • Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial
  • Adjustable handle and ergonomic hand bails offer superior handling of the machine
  • Squeegees are designed so that no operator adjustment is necessary
  • Small, compact size makes automatic scrubbing convenient even in tight spaces
  • 4” offset for Edge Scrub

Download LitGet a Quote

Specifications

Brush Speed: 180 rpm
Brush Type: Disc
Drive Motor: 1/5 HP (150 W)
Number of Brushes: 1
Rated Voltage: 24 Volts
Recovery Capacity: 13 Gal (49 liters)
Solution Capacity: 12 Gal (45 liters)
Squeegee Width: 33 in (84 cm)
Theoretical Productivity (BD): 15,000 ft² /hr ( 1,394 m²)
Working Speed (BD): 1.7 mph (2.7 km per hr)
Working Speed (TD): 3.1 mph (5 km per hr)
Theoretical Productivity (TD): 27,280 ft² /hr (2,534 m²)
Vacuum Flow: 65 cfm (110 m3/hr)
Vacuum Power: .60 HP (450 W)
Vacuum Waterlift: 45 inches ( 112mbar)
Weight with Batteries (BD): 313 lbs (142 kg)
Weight with Batteries (TD): 372 lbs (169 kg)
Weight without Batteries (BD): 203lbs (92 kg)

Parts, User & Service Manuals

For brush drive:
SparePartsDownload
UserManualDownload



For traction drive:
SparePartsDownload
UserManualDownload
