H26

H26

General Overview:

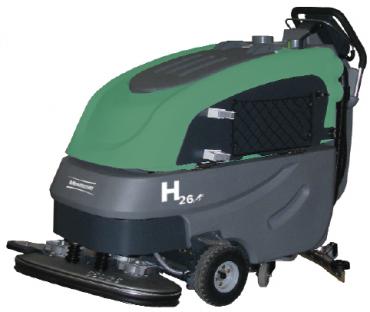

  • The H26 is a compact disc brush scrubber with a 26”cleaning path, specifically designed for hospitals and healthcare facilities
  • 19 gallon solution tank and 19 gallon recovery tank
  • Equipped with silence mode, which cuts sound pressure from 70 to 66 decibels, resulting in even quieter operation
  • Anti-microbial recovery tank is hygienic and easy-to-clean
  • Traction drive models offer ergonomic, adjustable speed regulation with the turn of a dial
  • Squeegees are designed so that no operator adjustment is necessary
  • Compact design makes automatic scrubbing convenient even in tight spaces
  • 4” offset for Edge Scrub

Download LitGet a Quote

Specifications

Brush Speed: 180 rpm
Drive Motor: 1/5 HP (150 W)
Number of Brushes: 2
Rated Voltage: 24 Volts
Recovery Capacity: 19 Gal
Scrub Path: 26″
Solution Capacity: 19 Gal
Working Speed (TD): 3.1 mph (5 km per hr)
Squeegee Width: 33 in (84 cm)
Theoretical Productivity (TD): 35,464 ft2 /hr (3,294 m²
Vacuum Flow: 65 cfm (110 m3/hr)
Vacuum Power: .60 HP (450 W)
Vacuum Waterlift: 45 inches ( 112mbar)
Weight with Batteries (TD): 372 lbs (169 kg)
