Clean Room Vacuums (CRVs)

CleanRoomVacuums

Clean Room Vacuums (CRVs)

Key Features:
  • A red indicator light alerts the operator when filter needs servicing
  • A 50 foot power cord
  • Optional Electromagnetic/Radio Frequency Interference filtration
  • Complete filtration, including the carbon brush dust from the motor
  • The U.L.P.A filter is covered and protected from damage

Download LitGet a Quote

General Overview

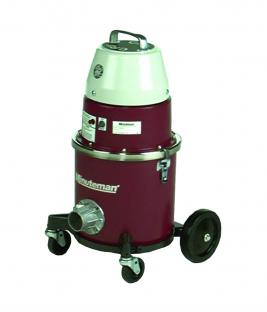

Surface contamination control is a challenging process within any cleanroom. “Unseen” particles, those particles smaller than 40 microns, can be the most difficult to control. The Minuteman Model CRVTM – Clean Room Vacuum was especially designed to be an intricate part of your facility cleaning procedures. It is ideal for use in Class 1 through Class 100,000 cleanrooms, gowning areas and air showers in all pharmaceutical labs, medical devices manufacturers, biological labs and computer rooms.

Our absolute filtration system includes a dual layer disposable paper bag, a non-woven cloth filter and a standard U.L.P.A (Ultra Low Particulate Air) filter, 99.999% efficient at 0.12 microns. This efficiency is much greater than normal H.E.P.A (High Efficiency Particulate Air ) filters.

A powerful 1.2 hp motor supplies ample suction at a constant airflow, and with a sound rating of only 65 dba, it is one of the quietest units available.

Specifications

Air Flow: 99 CFM( 2.8 m³/min)
Dry Capacity: .21 cu. ft. feet (.006 m³)
Front Wheels: 3″ 8 cm
Front Wheels: 3″ 8 cm
Power cord: 16-3, 50′ (15 mm)
Rear Wheels: 6″ 15 cm
Static Lift: 88 inches (2235mm)
Tank Size: 4 gal( 15L)
Vacuum Power: 930 watts
Weight: 26 lbs (12 kg)

Available Models

  • C80704-05 – Stainless Steel CRV with RFI/EMI/Digital Switching Station Vacuum, Includes U.L.P.A. Filter. (Tool Kit not inlcuded)
  • AC80704-06 – Painted Tank CRV with RFI/EMI/Digital Switching Station Vacuum, Includes U.L.P.A. Filter. (Tool Kit included)
