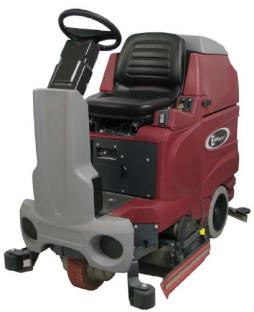

E Ride 28
E Ride 28
Key Features:
- Interchangeable scrub decks make this ride on scrubber a versatile performer
- An LED battery indicator lets the operator know when it’s time to charge the batteries
- Heavy-duty steel construction and rotationally molded polyethylene solution/recovery tanks mean that this scrubber is built to last
- Tilt steering and dual side entry
- See-through solution tank lid
- Removable debris box on the cylindrical scrub deck
- Three electronic brakes: E-mag, Dynamic, Plugging
- Fully variable solution flow rate
- Spray jets for cylindrical scrub deck ensures uniform solution distribution on floor
- Two caster wheel adjustment ensures proper squeegee alignment
- See-through vacuum motor cap for visual filter inspection
- Click here to learn about SPORT technology.
General Overview
- One innovative design produces four versatile models
- Choose from 28” or 32” scrubbing paths and choose from cylindrical or rotary disc scrub decks that are interchangeable on the same chassis
- Compact and maneuverable, the E Ride28/32 moves through tight spaces with ease while the operator rides in complete comfort
- The E Ride28/32 offers many outstanding standard features and many options to meet all of your scrubbing needs
- The E Ride28/32 cleans 42,360 to 45,450 sq. ft. per hour
- Six, 6 volt, 275 AH batteries provide several hours of run time on a single charge for maximum productivity
- Powerful scrub decks scrub and vacuum up solution in one pass leaving the floor immediately ready for traffic
More Information:
Click the titles below to learn more.
Ease of Use
- Single front wheel drive provides optimum traction and allows it to turn 360 degrees on its’ own axis for on-the-spot maneuverability
- Cushioned safety seat is ergonomically designed for operator comfort
- Two-position column in operator compartment provides optimum operator comfort while climbing onto the machine
- Conveniently located control panel with a directional switch to regulate the forward and reverse direction of the scrubber
- Easy-to-read control panel with five position switch to control various functions
- Cushioned safety seat will not allow the scrubber to move unless the operator is seated
- Polyethylene battery tray helps prevent acid spills and protects machine
- A 180 degree view from the operator seat makes operation a breeze with no blind spots
- Three electronic brakes for safety: E-mag, Dynamic, Plugging
- Self tracking squeegee leaves floor virtually dry in one pass and ready for traffic
- The rear squeegee assembly utilizes a breakaway design in case of impact and automatically lowers when the machine is moving forward and automatically raises in reverse
Specifications
Cylindrical Brush Head: (2) 1 HP, 900 RPM
Disc Brush Head: 1.5 HP dual right angle with gearbox
Drive Motor: 1.2 HP traction drive with e-mag brake
Front Wheels: 3 1/2″ x 12″ solid w/cross hatch (9cm X 30cm)
Front Wheels: 3 1/2″ x 12″ solid w/cross hatch (9cm X 30cm)
Height: 54″ (137 cm)
Length: 63″ (160 cm)
Rear Wheels: 4″ 14″ soft ride (10cm x 36cm) cross hatch
Disc Brush Head: 1.5 HP dual right angle with gearbox
Drive Motor: 1.2 HP traction drive with e-mag brake
Front Wheels: 3 1/2″ x 12″ solid w/cross hatch (9cm X 30cm)
Front Wheels: 3 1/2″ x 12″ solid w/cross hatch (9cm X 30cm)
Height: 54″ (137 cm)
Length: 63″ (160 cm)
Rear Wheels: 4″ 14″ soft ride (10cm x 36cm) cross hatch
Recovery Capacity: 38 Gal (144 liters)
Solution Capacity: 32 Gal (121 liters)
Squeegee Width: 30 1/2″
Vacuum Power: 1 HP, 3-stage tangential bypass
Weight: 1,242 lbs (563 kg)
Weight without drive/batteries: 822 lbs (373 kg)
Width with Squeegee: 30″ (76 cm)
Solution Capacity: 32 Gal (121 liters)
Squeegee Width: 30 1/2″
Vacuum Power: 1 HP, 3-stage tangential bypass
Weight: 1,242 lbs (563 kg)
Weight without drive/batteries: 822 lbs (373 kg)
Width with Squeegee: 30″ (76 cm)
